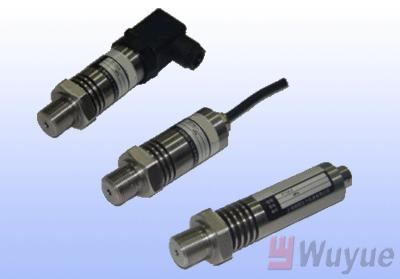

PT215normal temperature pressure sensor/transmitter

PT215normal temperature pressure sensor/transmitter

Wuyue's PT215 series normal temperature pressure sensors/transmitters are widely applied in hydromantic,casting,central air-conditioner system, constant pressure water supply, vehicle brake system, light industry,machinery,metallurgy,environmental protection,petrochemical,air compressor, and other automation system.

Features: Full sealed stainless steel welding structure, Small size, High sensitivity, Adjustable both at zero and Span.

PARAMETER:

• Pressure ranges:0~ 10KPa ~250MPa
• Accuracy:1%FS,0.5%FS,0.25%FS,0.1%FS
• Signal output:0~10mV,0~15mV,0~20mV,0~33.33mV,0~100mV,0~5V,0~10V,0~20mA,4~20mA
• Working voltage:+10VDC,+12~36VDC
• Temperature compensation:-20°C ~ +65°C
• Temperature of working medium:-40°C~+125°C
• Combined error:± 0.05% FS/°C
• Housing material:316 stainless steel
• Mounting:thread or any other way on request
• Electrical Connection: shielded cable(standard length is 5m)
• Overload pressure:1.5*FS or 3000MPa
• Insulation Resistance:>200MΩ
• CE Approved
